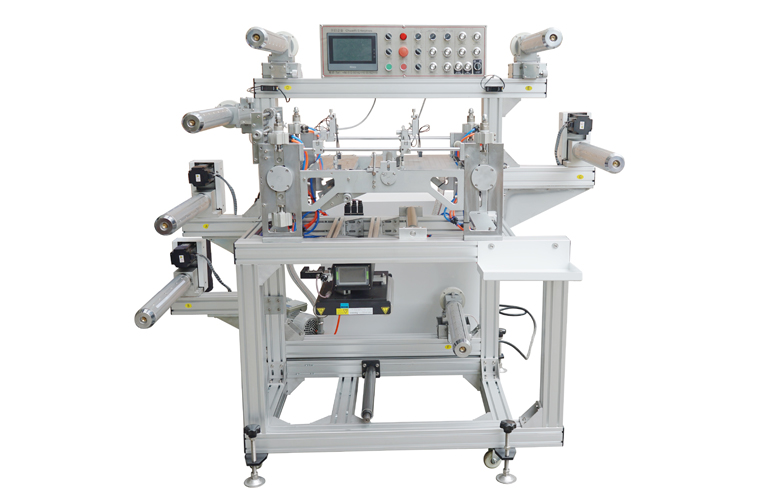

DT-420 transter laminating machine
HOME - DT-420 transter laminating machineDT-420 transfer laminating machine
Author: ComeFrom: Date:2018-11-27 16:26:37 Hits:4502
設備詳情
| 型號 | Model | DT-420 |
| 最高轉貼速度 | Highest repost speed | 30-200t/min |
| 最大進料寬度 | Maximum feeding width | 420mm |
| 貼合精度 | Laminating precision | ±0.2mm(特殊材料除外） |
| 機器尺寸 | Size | 1900X1150X1720mm |
| 機器重量 | Weight | 350kg |
| 電源 | Power | AC380V |
| 總功率 | Total power | 4.5KW |
性能特點：
Function and Characteristic
1、This equipment uses high-performance electrical components, high-precision positioning of the electronic eye, single PCS position recognition effectively solves the cumulative tolerance problem;
2,、X-direction positioning accuracy is up to ±0.1mm, using a circular knife machine to stick the way, the material is stable;
3,、It can achieve equal or non-equal size of product mutual work;
4、 The rubber roller rolling type reversal completely eliminates the bubble and wrinkles generated;
5.、The Y-direction can be equipped with an automatic correction system to achieve higher precision.
